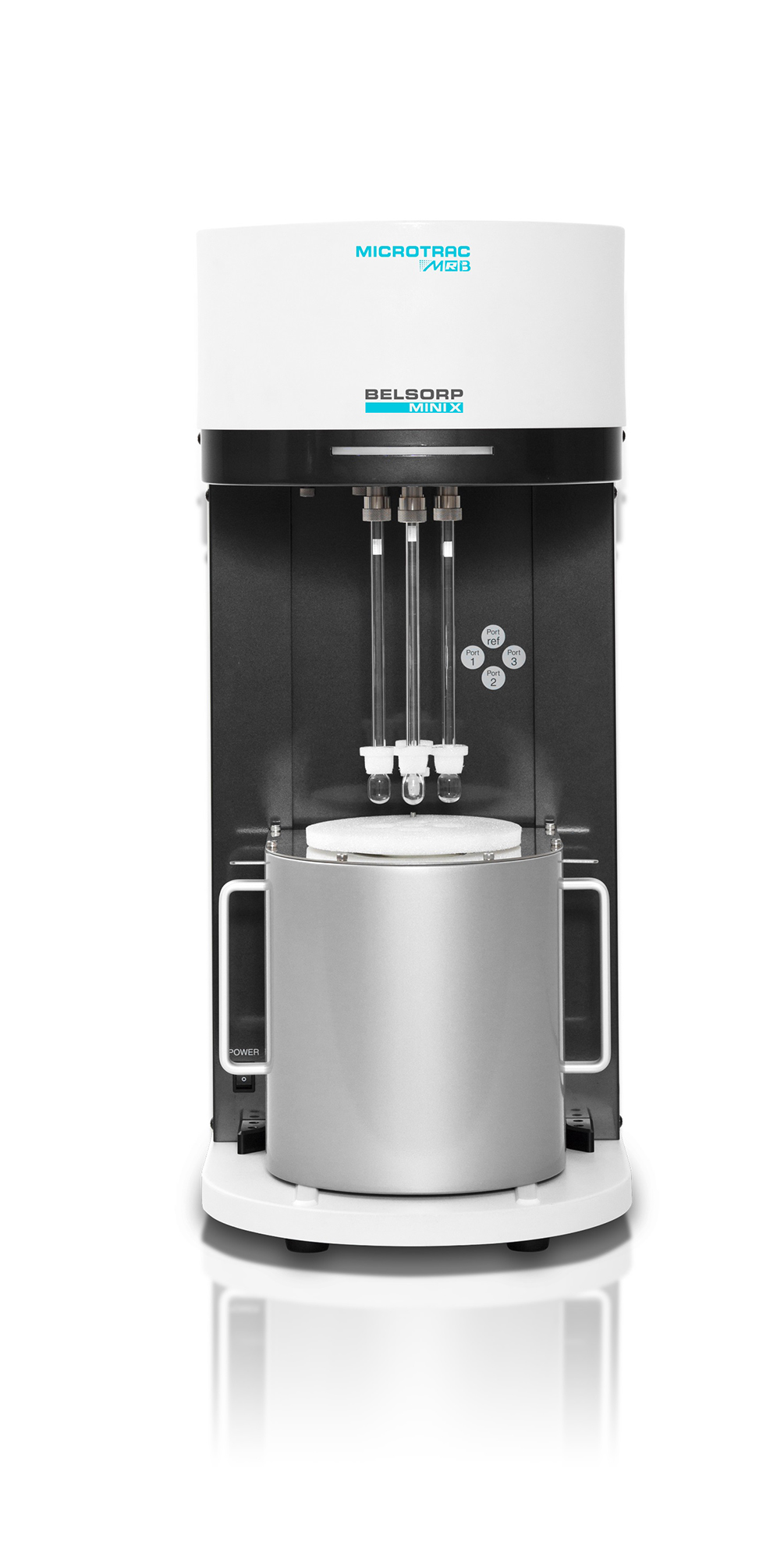

The BELSORP MINI X measures the specific surface area/pore size distribution by volumetric gas adsorption technique. Microtrac's unique dead volume evaluation method (AFSM) ensures highly accurate and reproducible measurements free of environmental impact. This compact model analyzes up to 4 samples simultaneously with the highest level of precision and reproducibility worldwide. The measurement time is drastically reduced compared to other models.




Product Advantages



• Simultaneous measurement of up to 4 samples with high precision at 1.5x throughput
• Dedicated exhaust valve and improved software considerably reduce measurement time
• Speedy measurement with optimum gas dosing (GDO) based on adsorption isotherm data from previous sample measurement.
• Automatic measurement of adsorption isotherms according to minimum condition settings
• Equipped with AFSMTM for increased measurement precision and reproducibility (Domestic patent: #3756919 / US Patent: 6,595,036)
• Adsorption isotherm measurement of various gases over a wide range of temperatures
• Measurement progress checks in the software improve working efficiency.
• Convenient attachment/detachment of temperature devices (such as Dewar vessels) ensures easy handling.
• Improved maintenance software allows for performance monitoring of each part.
• The world's smallest and most lightweight instrument.

Technical Data

Please note that the specifications below are just an exemplary configuration. Please contact us to discuss your individual requirements.

Measurement principle	Volumetric method + AFSM™
Adsorption gas	Nitrogen (N2), Argon (Ar), Methane (CH4), Ethane (C2H6), Carbon dioxide (CO2), Hydrogen (H2), n-Butane (n-C4H10), iso-Butane (iso-C4H10) and other non-corrosive gases
Gas ports	2 ports (5 ports max.)
Number of measurements	Max. 4 ports simultaneously (3 ports in High Accuracy mode)
Measurement range (specific surface)	0.01 m2/g and above (N2) (depending on sample density)
Pore size distribution (Diameter)	0.7 - 500 nm, Option: 0.35 nm by molecular probe method possible
Low pressure isotherm	p/p0 = 10^-4 (N2 @77K, Ar @87K)
Pressure transducer	133 kPa (1000 Torr) x 6 units
Vacuum gage / pump	Rotary pump
Sample tube	Standard tube, approx. 1.8 cm3 (optional: 5 cm3)
Dewar vessel	Volume: 2 l Holding time: 30 h
Pretreatment heater	50 - 450°C
Water bath	-10 - 70°C
Analysis software BELMaster™ 7	Adsorption isotherm, BET specific surface area type I (ISO9277)BET auto analysis, Langmuir specific surface area, BJH, DH, CI, INNES method
Analysis software BELMaster™ 7 cont.	t-plot, NLDFT / GCMC (OP BELSim™), MP method, Dubinin-Astakhov method, Molecular probe, as-plot
Dimensions (W x H x D)	280 x 650 x 465 mm (excluding vacuum pump & PC)
Weight (main body)	38 kg (excluding vacuum pump & PC)
Utility - Gas	He, N2 (99.999% or higher purity), 0.1 ± 0.02 MPa, joint: 1/8" Swagelok Exhaust: Rotary pump exhaust port, ø 11 mm
Utility - Power	Single phase, AC 100~240 V (50 / 60 Hz) / 10A (incl. R.P.), 50 / 60 Hz
CE certified	Yes
